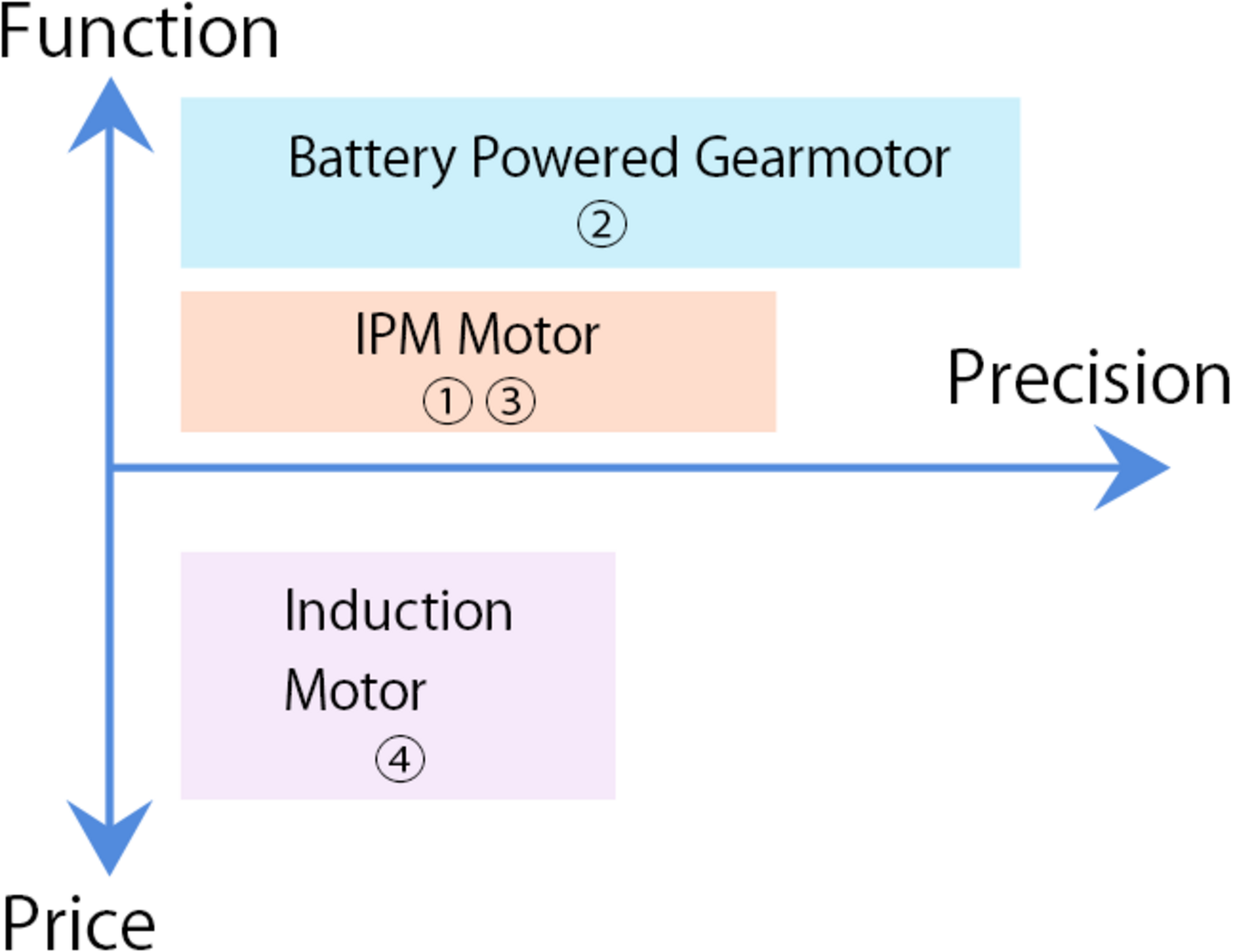

Difference of each series
Want to use for variable speed
Want to use for DC power
Want to Control the position (positioning). *Japan only
Want to use for a constant speed
Want to use for variable speed
① IPM Gearmotor(Speed Control Type)
※Click here for details about products.| Motor Power | 0.1kW ~ 2.2kW | Reduction Ratio | 1/5 ~ 1/1500 (Varies depending on output shaft type and motor power) |
|---|---|---|---|
| Speed Control Range | 0 ~ 2500 r/min (Rated rotational speed 1800 r/min) |
Start/Stop Frequency | 30回/分 |
- IPM motor(internal permanent magnet synchronous motor) No need for dedicated cables.
- Wide range of motor power from 0.1kW to 2.2kW
- Unlike the induction motor that has a "slip", it rotates at a constant speed specified by the frequency regardless of the load fluctuations.
Want to use for DC power
② Battery-powered Type Gearmotor
※Click here for details about products.V Type
| Motor Power | 50W ~ 0.4kW | Reduction Ratio | 1/5 ~ 1/240 (Varies depending on output shaft type and motor power) |
|---|---|---|---|
| Speed Control Range | 100 ~ 3000 r/min (Rated rotational speed 2500 r/min) |
Supply Voltage | DC12V/24V/48V (battery-powered) |
SD Type
| Motor Power | 0.75kW | Reduction Ratio | 1/15～1/60 (May differ depnding on the output shaft type) |
|---|---|---|---|
| Speed Control Range | 80～4000r/min (Rated rotational speed 3000 r/min) |
Supply Voltage | DC48V (battery-powered) |
- Can be operated with battery power of DC12V/24V/48V.
- Suitable for mobile applications.
V Type
SD Type
Want to Control the position (positioning). *Japan only
③ IPM Gearmotor (position Control type)
※Click here for details about products.| Motor Power | 0.1kW ~ 2.2kW | Reduction Ratio | 1/5 ~ 1/1500 (Varies depending on output shaft type and motor power) |
|---|---|---|---|
| Resolution of one motor revolution | 0.1kW ~ 0.4kW : 2048 0.75kW ~ 2.2kW : 3072 |
Stopping Precision (motor shaft) | 0.1kW ~ 0.4kW : ±5° 0.75kW ~ 2.2kW : ±3.3° |
- Equipped with IPM Motor (magnetically embedded synchronous motor), it enables Encoder-less position Control Operation.
- No need for dedicated cables.
- Unlike the induction motor that has a "slip", it rotates at a constant speed specified by the frequency regardless of the load fluctuations.
Want to use for a constant speed
④ Induction Gearmotor(MID series / MINI series)
※Click here for details about products.- Easy operation with direct AC power input.
- 3-phase and 1-phase motors are available.
- Variable speed operation is available with inverter (VFD).
| MID series | |||
|---|---|---|---|
| Motor Power | 0.1kW ~ 2.2kW | Reduction Ratio | 1/5 ~ 1/1500 (Varies depending on output shaft type and motor power) |
| MINI series | |||
|---|---|---|---|
| Motor Power | 15W ~ 90W | Reduction Ratio | 1/5 ~ 1/1800 (Varies depending on output shaft type and motor power) |
